Product No: XK200

Product Name: Small CNC Milling


  • High performance 4 axis milling CNC controller.
  • Using ARM high performance CPU and ultra large scale programmable devices FPGA, real time multi task control and hardware interpolation technology, to realize the high efficiency of μm-level precision processing.
  • The standard spec includes MPG hand wheel.

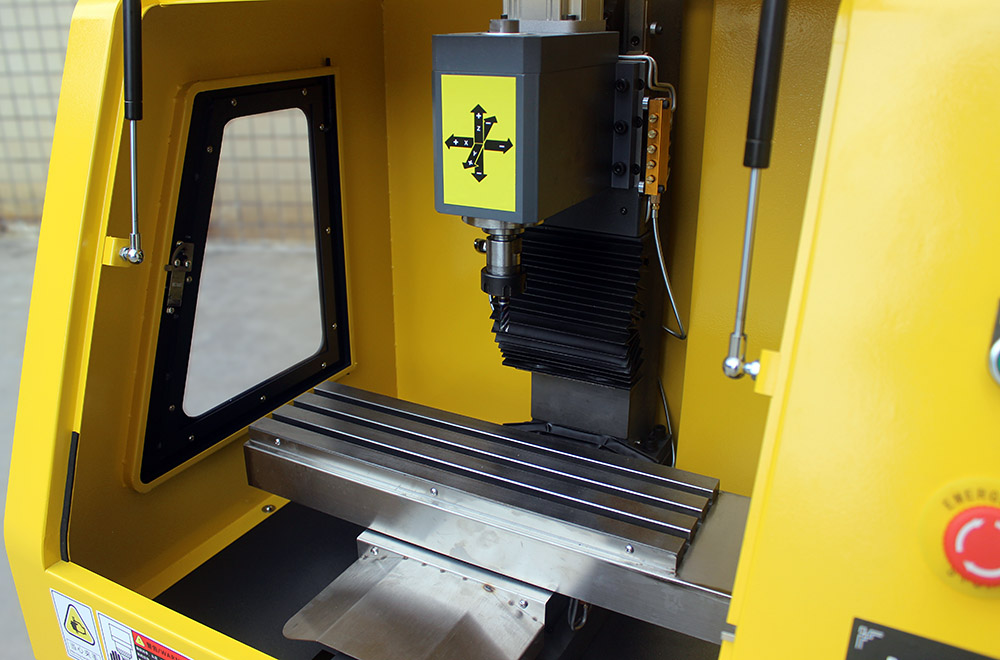

  • High-precision linear guide
  • Selection of high -quality casting materials,more compact.
  • Semi-automatic lubrication system,protect the rail life.
  • High quality 3 axis step motor,high torque brushless motor.

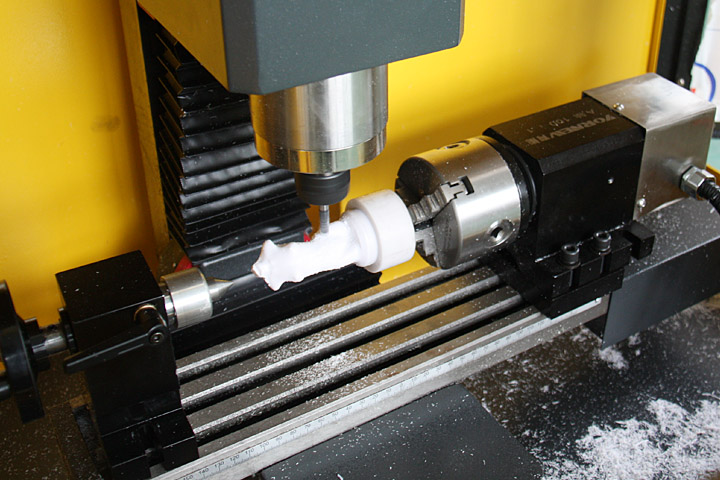

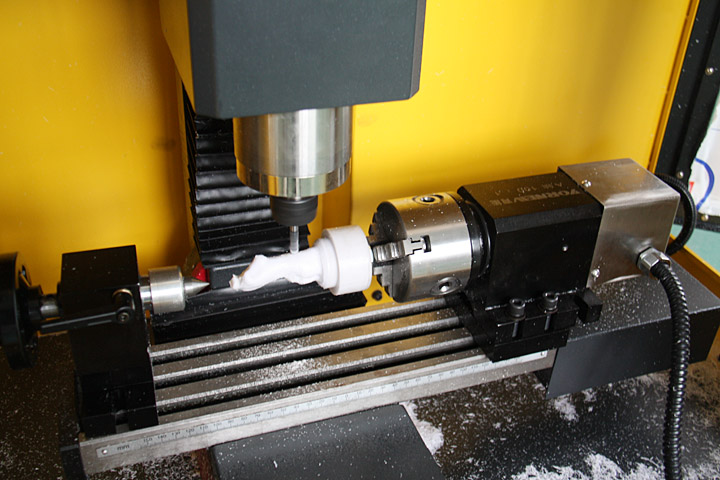

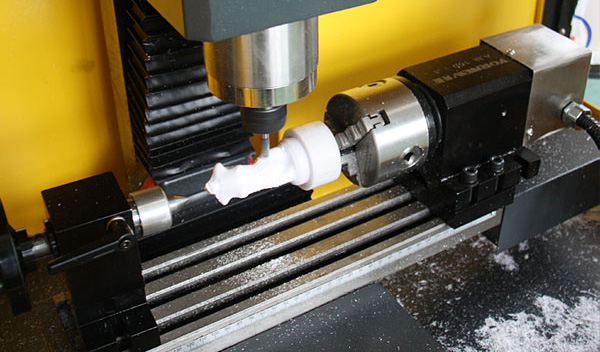

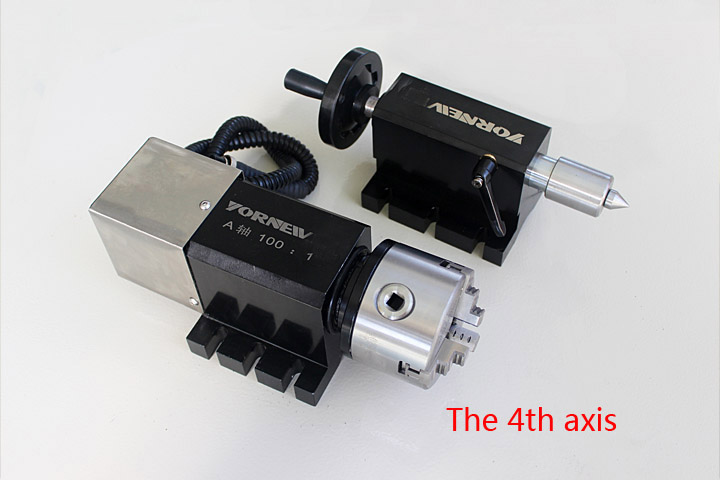

  • Pre-installed 4 axis fast interface.
  • Best choice for DIY or Hobby user and Education & Training CNC.

Features

(1). High performance 4 axis milling CNC controlle.
(2).The standard spec includes electronic hand wheel.
(3).Selection of high -quality casting materials,more compact.
(4).High-precision linear guide.
(5).X, Y, Z, A four axis micron level interpolation accuracy controlling;
(6).USB/U dis/RS232COM etc many kinds of communication mode, to help users achieve different data transmission and software upgrades easily.
(7).Perfect self diagnosis function, internal and external status real-time display, alarm immediately when abnormal.
(8).Macro variable, macro definition programming,realizing a variety of logical relations. Support macro program with parameters ,convenient to the user programming
(9).With the automatic aligning instrument.
(10).Teaching function: Teaching+ simplified instruction programming,teaching methods in table format, that is simple and intuitive.
(11).Graphic simulation function: show the graphics of the processing program and the tool path of the actual operation, tool path simulation processing without controlling the operation of the machine , to exam if the preparation process is correct.
(12). Multi interface selection: support multi language interface display, automatic fault alarm. Processing information display,processing time, the number.
(13).Parameter tabular: Input / output address number setting, only need to fill in the corresponding value in the configuration table.
(14).7 inch super large colorful(800*480) LCD screen.
(15).Applicable industry: technology development, advertising design, art, ocational technical college Education & Training CNC and DIY enthusiasts.

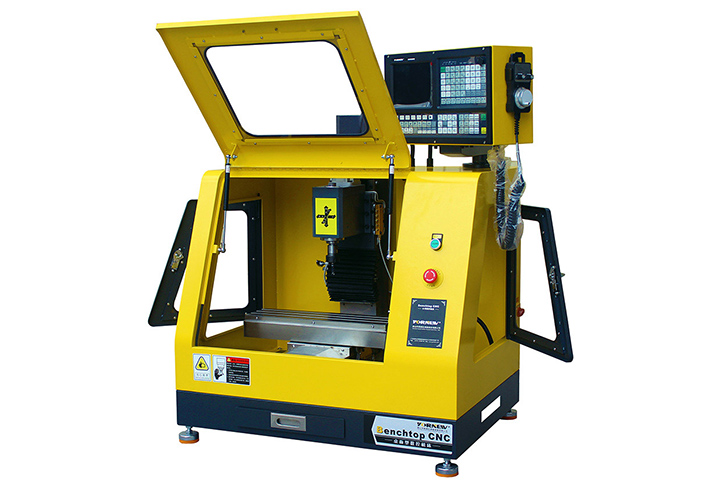

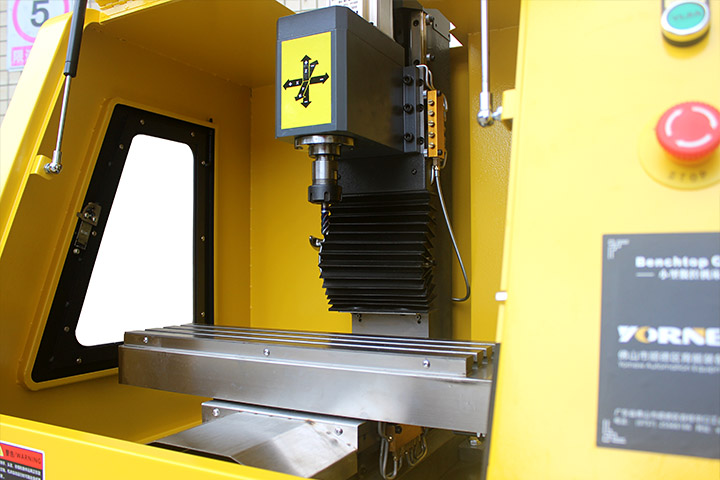

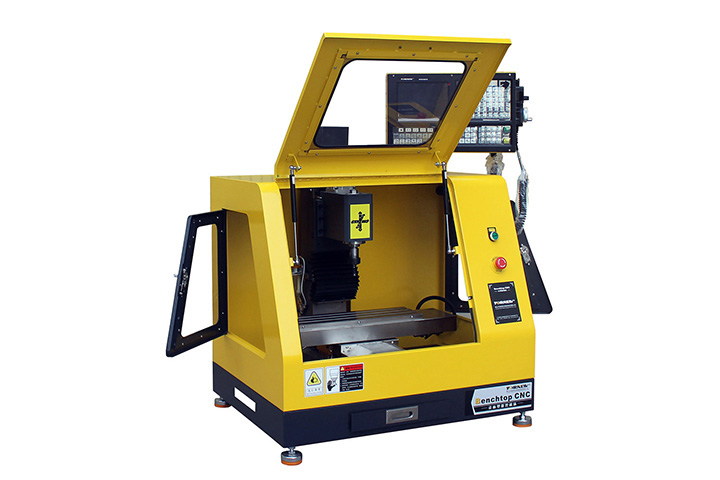

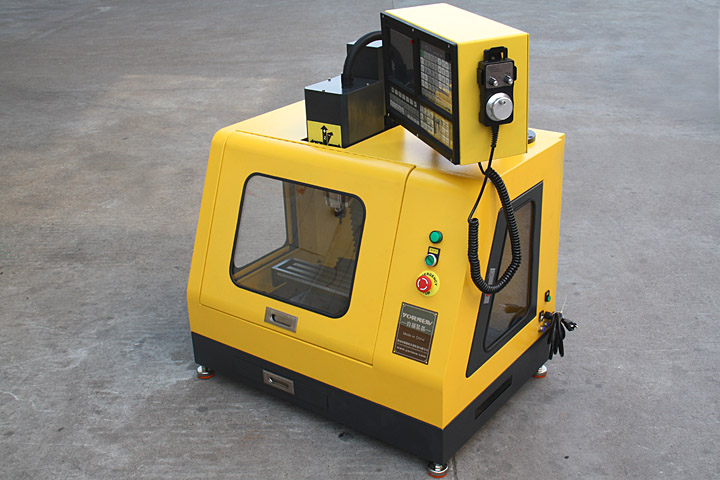

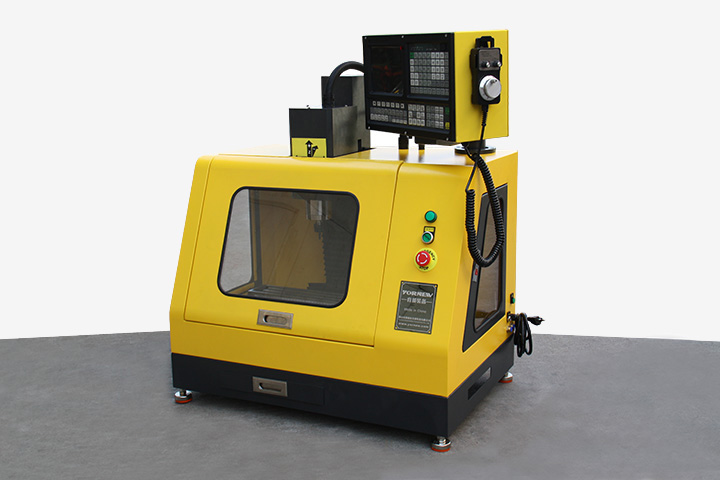

XK200 Mini CNC Milling
XK200 Mini CNC Milling
YORNEW CNC
YORNEW CNC


Technical parameters
X axis travel 230mm
Y axis travel 130mm
Z axis travel 220mm
Tool DIA. range 2-12mm or 4-16mm
Control system KY1000MC CNC Controller
MPG hand wheel 4 axis
Spindle motor 2.2kw or 750W
Spindle speed 100-24000r/min or 300-3500r/min
The max moving speed 2000mm/min
The max feeding speed 1000mm/min
Positioning accuracy 0.02mm
Repeatability accuracy 0.01mm
Transmission ball screw
guide rail High-precision linear guide
Table size 460*130mm
T slot (amount*width) 35*12mm
Max. load 30kg
Table structure Full cast iron
Power 220VAC / 110VAC
Weight(NW/GW) 165/200kg

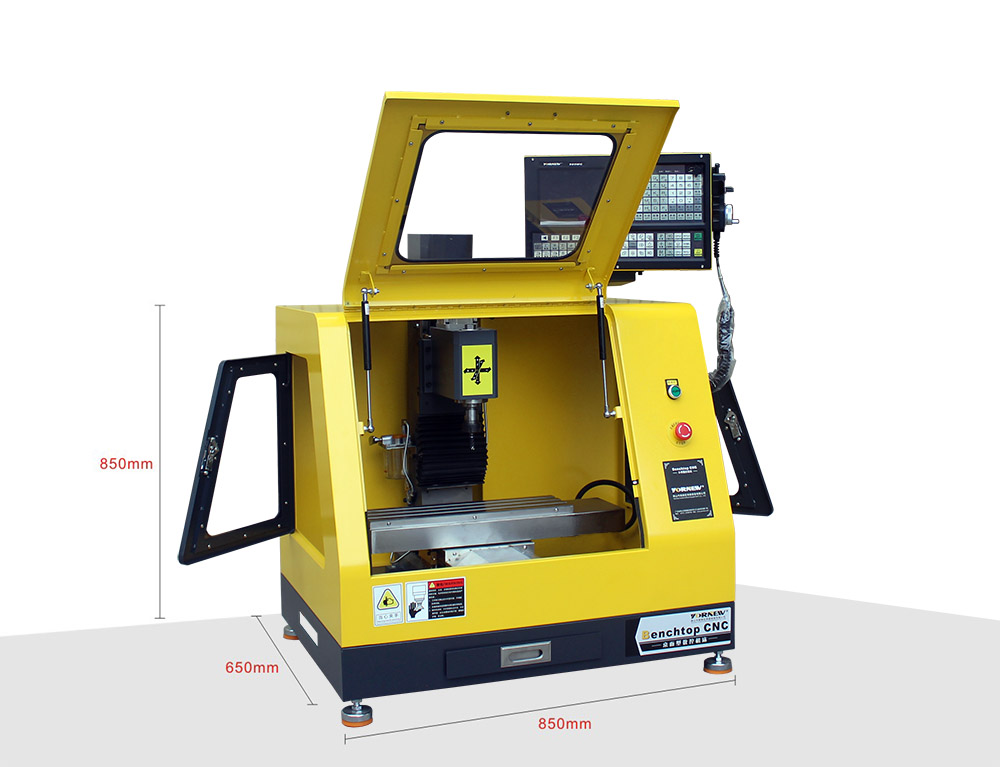

Overall dimension 850*650*850mm
Packing size 930*750*1200m

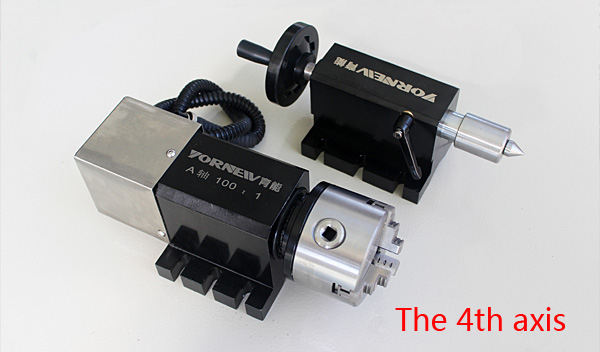

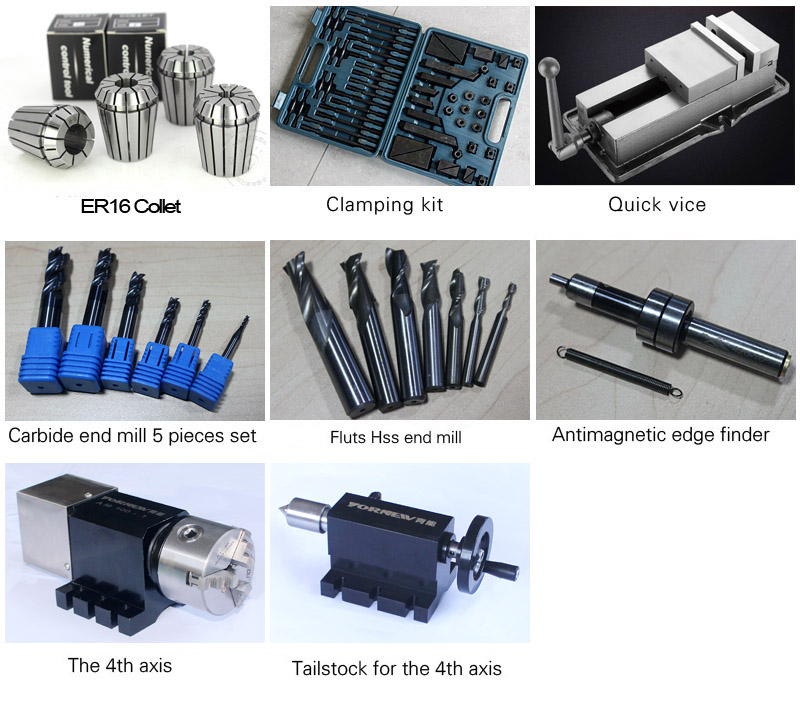

Micro CNC Milling Machines Optional Accessories
